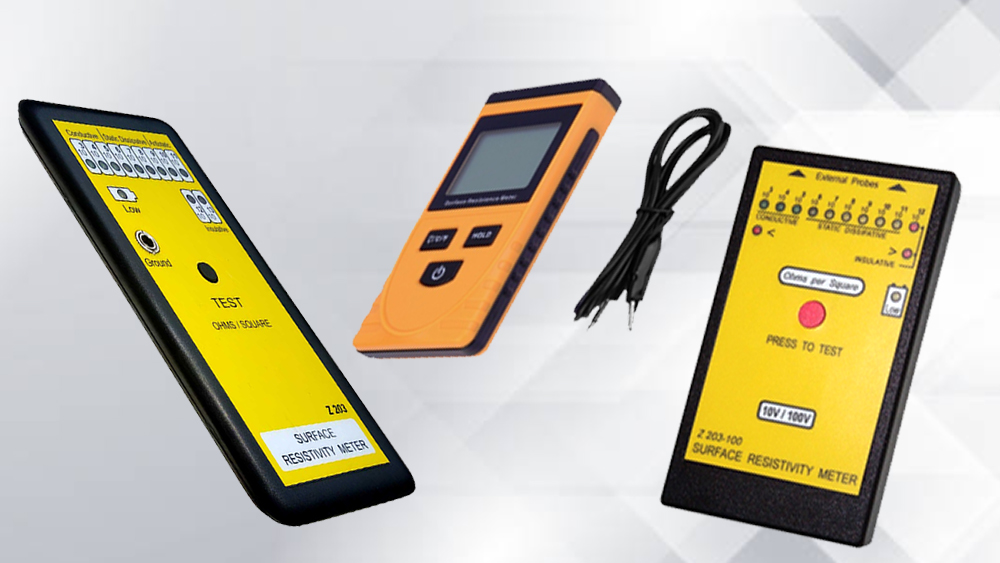

ESD Surface Meter
ESD Surface Meter
Surface Resistivity and Surface to Ground

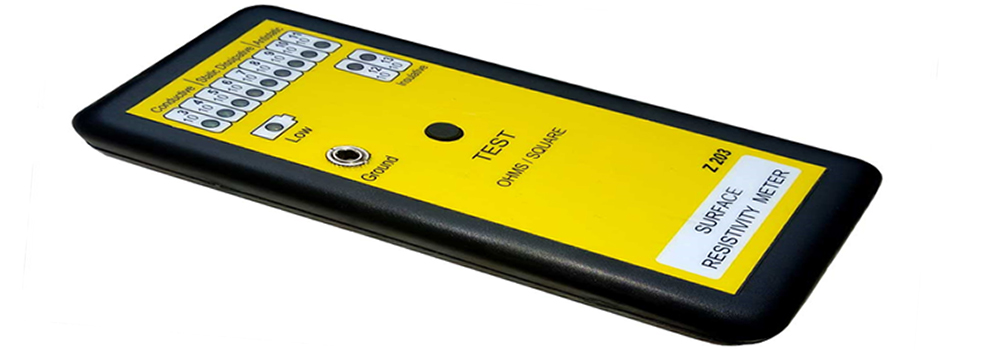

Surface Meter 9V Technical Specifications
| Surface Resistivity and Surface to Ground can be conveniently measured in accordance with Std D257. |
| In the circuit industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications and fall within specified limits. |
| Colour-coded LEDs conveniently indicate conductive, dissipative and insulative values from 10^3 to 10^13 ohms/square |
| SPECIFICATIONS |
| Measurement Range |
: 10^3 to 10^13 ohms/sq |
| Measurement accuracy |
: half decade |
| Resolution |
: One decade |
| Excitation voltage |
: 9 V |
| Indication |
: By colour-coded LEDs |
| Power supply |
: 9 Volt DC battery. |
| Low battery |
: Warning at 7.5 V |
| Dimensions in mm |
: 135 x 70 x 25 |
| Weight |
: 150 GMS |
| Traceability |
: To national standards |
| Warranty |
: 12 months. |
| Accessories included |
: 1 m Grounding Cord & Carrying case |
| Conformance |
: D257 |

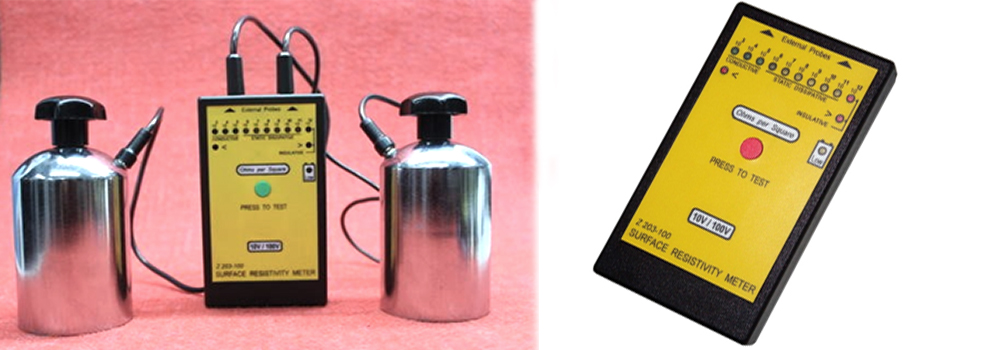

Surface Resistivity Meter with External Probe-100V Technical Specifications
| Surface Resistivity, Resistance between 2 points, and Surface to Ground can all be conveniently measured in accordance with EOS/ESD Association Std S4.1. Measurements in the conductive range i.e. upto 10^5 are made at 10V and higher values at 100V. Measurements can be also be made with external probes. |
| Colour-coded LEDs conveniently indicate conductive, dissipative and insulative values from 10^3 to 10^12 ohms/square with under range and over range indications. |
|
| SPECIFICATIONS : |
| Measurement Range |
: autoranging 10^3 to 10^12 ohms/sq |
| Measurement accuracy |
: half decade |
| Resolution |
: One decade |
| Excitation voltage |
: 10V for <10^5, 100V for >=10^6 |
| Indication |
: By Multi-colour LEDs |
| Power supply |
: 9 Volt DC battery. |
| Low battery |
: Warning at 7.5 V |
| Dimensions in mm |
: 125 x 75 x 29 |
| Weight |
: 160 GMS |
| Traceability |
: To national standards |
| Warranty |
: 12 months |
| Accessories included |
: Surface-to-Ground Cord & Carrying case |
| Optional |
: External measuring probes |
| Conformance |
: ESD/EOS S4.1, IEC 61340-5 |
|
|

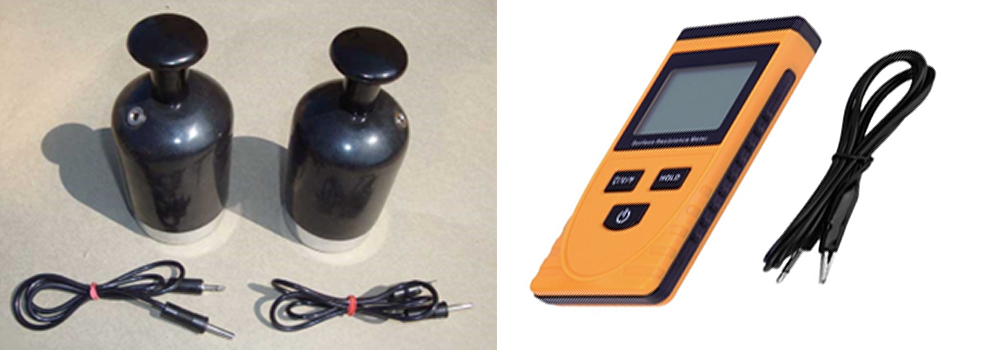

Digital Surface Meter - Z2033 Technical Specifications
| Measures Surface Resistivity or Resistance between 2 points. Products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, etc., have resistance values which need to conform to stringent specifications. The material characteristics – Conductive, Dissipative and Insulative are conveniently displayed. |
| The additional feature are surface-to-ground measurement, ambient Temperature measurement and Data Hold function, all indicated on a large backlit LCD display. |
| MEASUREMENTS CAN ALSO BE MADE USING EXTERNAL PROBES |
| SPECIFICATIONS : |
| Measurement Range |
: 10^3 to 10^11 ohms/sq, 0 – 50C |
| Measurement accuracy |
: Resistance 10%, Temp +2C |
| Indication |
: LCD backlit display |
| Power supply |
: 9 Volt DC battery |
| Battery condition |
: Indication On LCD display |
| Dimensions in mm |
: 125 x 62 x 35 |
| Weight |
: 160 grams |
| Traceability |
: To national standards |
| Warranty |
: 12 months. |
| Accessories included |
: 1 m Grounding Cord & Carrying case |
| Conformance |
: D257 |
|
|
