Continuous Workstation Monitor (Wriststrap + Ground)
We here at Delight India Corporation are a passionate and dedicated team of electrostatic discharge experts.
Continuous Workstation Monitor (Wriststrap + Ground)
Continuous Workstation Monitor (Wriststrap + Ground)
Surface Resistivity and Surface to Ground
Continuous Workstation Monitor (Wriststrap + Ground) Technical Specifications

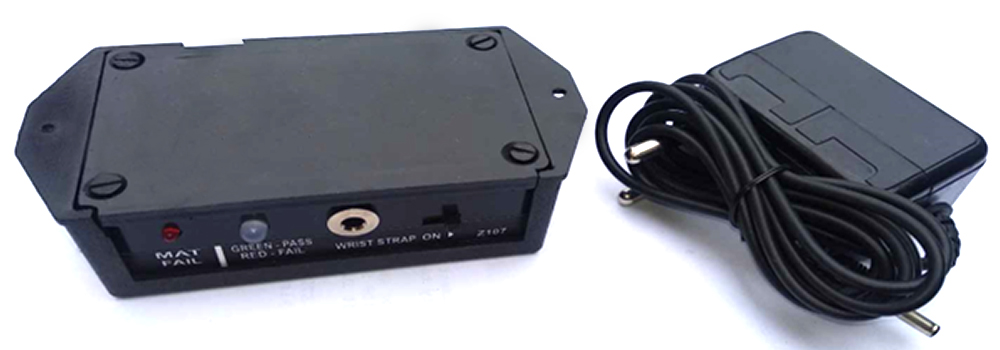

| The Model Z107 has independent circuitry to continuously monitor the Wrist Strap and Work Surface. |
| WRIST STRAP |
| This section monitors the wriststrap to detect loss of continuity between operator and monitor. Broken coil cords and improper contact with the skin are detected instantly to alert the operator. |
| WORK SURFACE (MAT) |
| The work surface is monitored and a warning is given if Surface-to-Ground resistance exceeds the safe value |
| SPECIFICATIONS |
| Pass Threshold |
: under 10 Megohms for Wrist Strap. |
|
: under 10 Megohms for MAT |
| Indications |
: Pass – Green LED |
|
Fail – Flashing Red LED for Wrist Strap |
|
Steady Red LED for MAT |
|
Audible Alarm for Fail mode. |
| Power supply |
: 6VDC 100ma |
| Dimensions |
: 110 x 60 x 32 mm |
| Weight |
: 75 gms |
| Warranty |
: One year |
| Conformance |
: BS EN 100 015 – 1 (advisory only) |
|
|
